Mechanical Suspension Damping Comfortable Bus Seat Heavy Truck Driver Seat

Name: Mechanical Suspension Damping Comfortable Bus Seat Heavy Truck Driver Seat
Brand: Shaanxi Botai Automobile Accessories Co.,Ltd.
SKU: M801-14
Price: 204.00 USD
Availability: InStock

Brand Name:	Botai
Model Number:	M801-14
MOQ:	1 set
Price:	$146-$263/set
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi China

Certification:

ISO9001

Name:

Mechanical Suspension Damping Comfortable Bus Seat Heavy Truck Driver Seat

Backrest Size:

510*850mm

Backrest Adjustment:

80-120°

Horizontal Adjustment:

Front 105mm, Rear 120mm 23 Adjustable

Delivery Time:

10-15days

Product Name:

1 Set

Packaging Details:

6-8 Cartons Packed To A pallet

Supply Ability:

100 Sets Per Week

Highlight:

Comfortable Bus Seat

Heavy Truck Driver Seat

Mechanical Suspension Seat

Product Description

Mechanical Suspension Damping Comfortable Bus Seat Heavy Truck Driver

Seat Details

Product Name	Mechanical Suspension Damping Comfortable Bus Seat Heavy Truck Driver Seat
Place of Origin	Shaanxi China
Product Model	M801-14

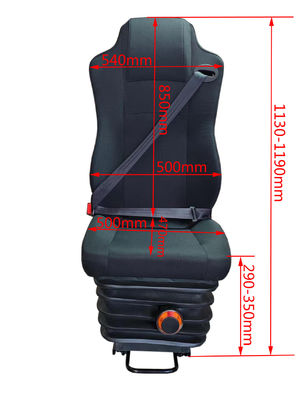

Product Size	550570(1130-1190)mm
Product Material	PU/Leather/Fabric
Product Color	Black/customized
Backrest size	510*850mm
Cushion size	500470(290-350)mm

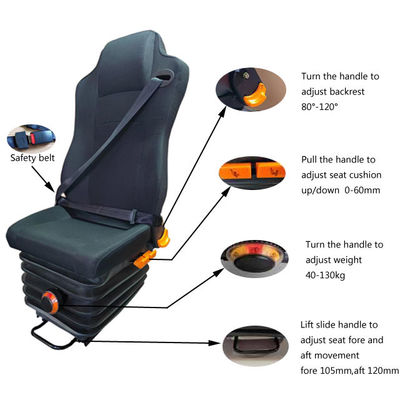

Adjustable Backrest Elevation	80-120°
Horizontal adjustment	Front 105mm, Rear 120mm 23 adjustable
Weight Adjustment	40-130kg
Bottom Connecting Hole Spacing	Left And Right 216mm* Front And Rear 295.5mm

Mechanical Suspension Damping Comfortable Bus Seat Heavy Truck Driver

Seat Technical parameter

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas shielded

welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and vibrations,

release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure and

sealing medium, stable performance and long service life

4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly streng-

-then the durability of structural parts and reduce the damping gap

5. After the seat is assembled, the slide adjustment, backrest adjustment, and headrest adjustment

should be flexible and reliable, without interference.

6. The outer fabric of the seat should be firmly stitched, the stitching part should not allow the cable

head to be exposed, the seam off line and jumper phenomenon, the surface of the seat after

assembly should be full and clean, without deformation, discoloration, wrinkling, external leakage,

decolorization, stains, damage and scratches.

7. The skeleton and the leakage parts should be treated with rust prevention, in line with the factory

requirements, and electroplating and chemical treatment should be in line with the factory

8. Each connection of the seat should be firmly connected and reliable. Each welding component

shall not have welding dislocation, welding, welding and other defects.
