M801 Mechanical Suspension Seat High Speed Railway Electric Locomotive Driver Seat

Name: M801 Mechanical Suspension Seat High Speed Railway Electric Locomotive Driver Seat
Brand: Shaanxi Botai Automobile Accessories Co.,Ltd.
SKU: M801-12
Price: 251.00 USD
Availability: InStock

Brand Name:	Botai
Model Number:	M801-12
MOQ:	1 Set
Price:	$224-＄279/set
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi China

Certification:

ISO9001

Name:

Customized M801 Mechanical Suspension Seat Railway Locomotive High-speed Railway Subway Driver Seat

Backrest Size:

480*630mm

Material:

PU+Fabric

Backrest Adjustment:

40-170°

Size:

570*570*(1390-1450)mm

Cushion Size:

480*460*（540-600）mm

Fuction:

360 Rotation

Horizontal Adjustment:

Front 105mm, Rear 120mm 23 Adjustable

Packaging Details:

6-8 Cartons Packed To A pallet

Supply Ability:

100Sets Per Week

Highlight:

High Speed Railway Mechanical Suspension Seat

Electric Locomotive Mechanical Suspension Seat

M801 Mechanical Suspension Seat

Product Description

Factory Customized M801 Mechanical Suspension Damping Seat Railway Locomotive

Driver Seat High-speed Railway Subway Driver Seat Details

Product Name	Customized M801 Mechanical Suspension Seat, Railway Locomotive Driver Seat High-speed Railway Subway Driver Seat
Place of Origin	Shaanxi China
Product Model	M801-12
Scope Of Application	Universal
Product Size	570570(1390-1450)mm
Product Material	PU+Fabric
Product Color	Black+Blue
Backrest size	480*630mm
Cushion size	480460(540-600)mm
Adjustable Backrest Elevation	40-170°
Horizontal adjustment	Front 105mm, Rear 120mm 23 adjustable
Weight Adjustment	40-130kg
Bottom Connecting Hole Spacing	Left And Right 216mm* Front And Rear 295.5mm

Mechanical Suspension Seat High Speed Railway Electric Locomotive

Driver Seat Details

Seat type: M801 Mechanical suspension seat

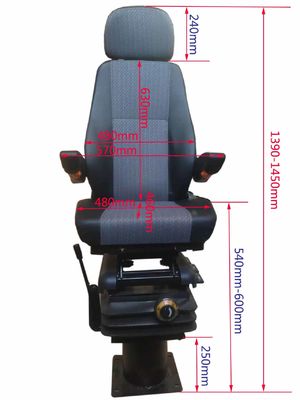

Overall seat size: length 570mm* width 570mm* height (1390-1450) mm

Back width: 480mm back height: 630mm

Cushion width: 480mm cushion depth: 460mm cushion height: (540-600) mm

Headrest adjustment: 3 gears adjustable, 25mm per gear

Backrest elevation Angle can be adjusted: 40-170°

Height adjustment: stroke 60mm

Horizontal adjustment: front 70mm, rear 70mm

Weight adjustment: 40-130kg

360 degree rotation: ±45°, ±90°, ±135°±180° eight directions can be adjusted

Rotation height: 250mm

Distance between connecting holes at the bottom: 180mm around x 230mm front and rear

Dual armrests are adjustable

Fabric: PU+ composite cloth

Application: railway locomotive driver seat, high-speed railway subway driver seat

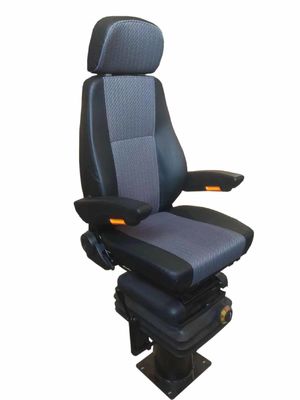

M801 Mechanical Suspension Seat High Speed Railway Electric Locomotive Driver Seat 0

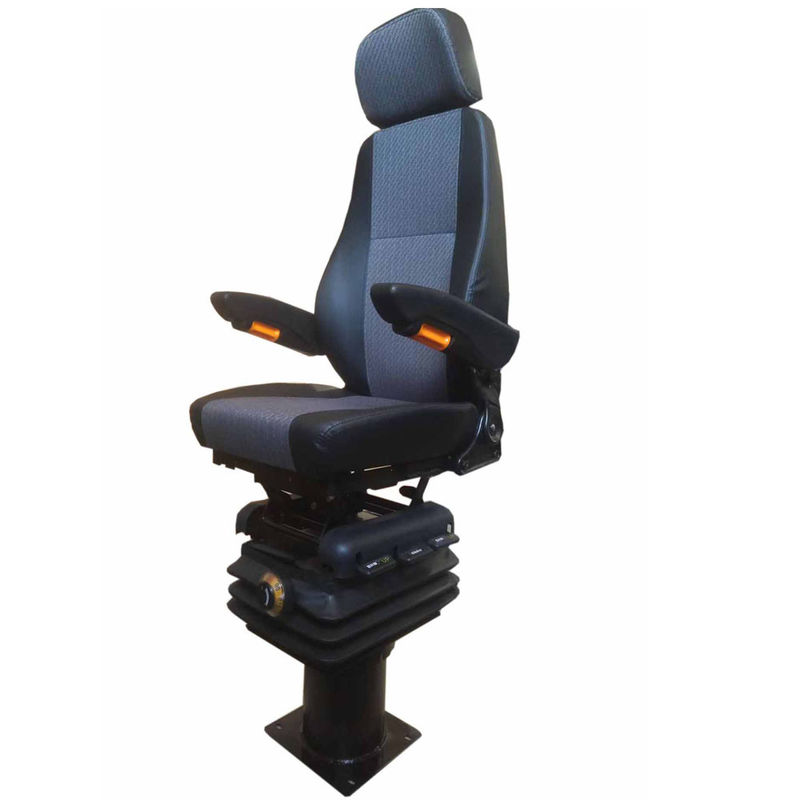

M801 Mechanical Suspension Seat High Speed Railway Electric Locomotive Driver Seat 1
