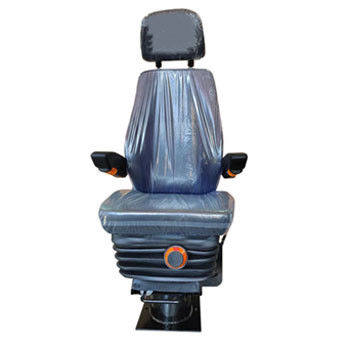

360 Swivel Crane Seats Train Locomotive Seat Air Suspension Seat

Name: 360 Swivel Crane Seats Train Locomotive Seat Air Suspension Seat
Brand: Shaanxi Botai Automobile Accessories Co.,Ltd.
SKU: M801-18
Price: Negotiable USD
Availability: InStock

Brand Name:	Botai
Model Number:	M801-18
MOQ:	1 set
Price:	$200-$281/set
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi China

Certification:

ISO9001

Name:

Mechanical Suspension Seat 360 Swivel Crane Train Locomotive Lifting Equipment Seat

Material:

Pu /Leather/Fabric

Size:

650*570*1300-1360mm

Backrest Size:

480*530mm

Product Model:

M801-18

Product Color:

Black/Customized

Product Features:

1 Set

Delivery Time:

10-15days

Packaging Details:

6-8 Cartons Packed To A pallet

Supply Ability:

100Sets Per Week

Highlight:

360 Swivel Crane Seats

Train Locomotive Seat

Swivel Air Suspension Seat

Product Description

Mechanical Suspension Seat 360 Swivel Crane Train Locomotive Lifting Equipment

Seat Details

Product Name	Mechanical Suspension Seat 360 Swivel Crane Train Locomotive Lifting Equipment Seat
Place of Origin	Shaanxi China
Product Model	M801-18
Scope Of Application	Universal
Product Size	6505701300-1360mm
Product Material	PU/ Leather/Fabric
Product Color	Black/Customized
Backrest size	480*630mm
Cushion size	480470440-500mm
Backrest Angle Adjustment	40-170°
Weight Adjustment	40-130kg

Instructions for Use: Common seats for all models.

Headrest Adjustment

Adjustment range: 3 adjustable, each 25mm

Method: 1, move the adjustment button, and press the head pillow down to the required position,

release the button.

2. Move the headrest upward to the required position.

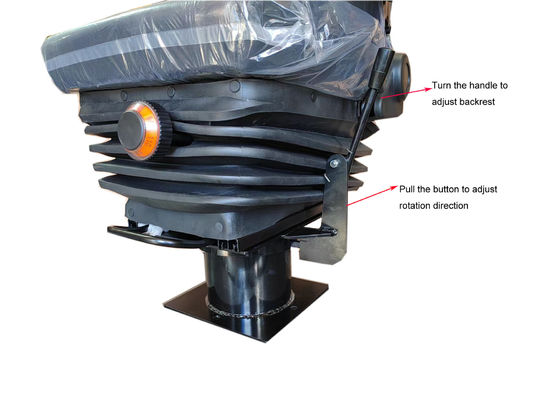

Elevation Adjustment

Adjustment range: 80° -- 80°+41°

Method: Move the handle upward, turn the backrest to the required Angle, and then release the handle.

Rear and Height Adjustment

Adjustment range: 0-60mm

Method: Move the handle upward, add (subtract) force to the back end of the seat cushion downward

(up), and the back end of the seat cushion will drop

Lower (raise) to Desired Position, Release The handle.

Front Height Adjustment

Adjustment range: 0-60mm

Method: Move the handle upward, add (subtract) force to the back end of the seat cushion downward

(up), and make the front end of the seat cushion

Lower (raise) to desired position, release the handle.

Hardness Control

Adjustment range: 40-130kg

Formula: Rotate the handwheel and adjust the preset force to the required position according to the

road conditions and the driver's weight.

Note: Do not rotate the pointer into a range less than 40 and greater than 130.

Front and rear position adjustment

Adjustment range: 120mm front and 110mm rear, 23 adjustable.

Method: Move the handle upward, move the seat forward (back) to the required position, and release

the handle.

Mechanical Suspension Seat 360 Swivel Crane Train Locomotive Lifting Equipment

Size
