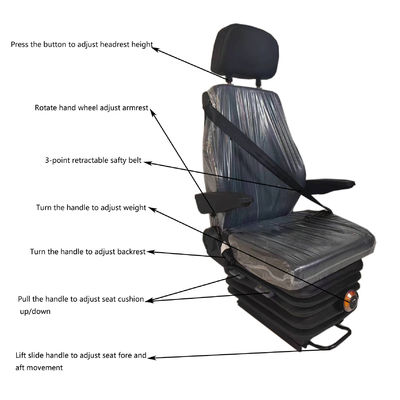

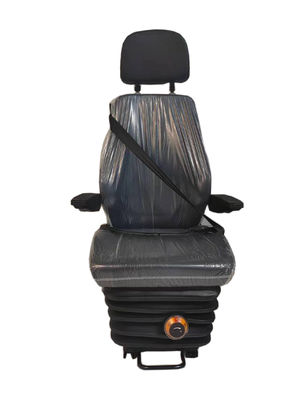

Height Adjustment M801 Mechanical Tractor Seat Air Ride Seats For Semi Trucks

Name: Height Adjustment M801 Mechanical Tractor Seat Air Ride Seats For Semi Trucks
Brand: Shaanxi Botai Automobile Accessories Co.,Ltd.
SKU: M801-84
Availability: InStock

Brand Name:	Botai
Model Number:	M801-84
MOQ:	1 set
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi China

Certification:

ISO9001

Name:

Mechanical Suspension Seat With Height Adjstment For Tractor Seat

Material:

Size:

570*570*1150-1210m

Color:

Black Or As Your Requried

Product Model:

M801-84

Base Mounting Hole Spacing:

Left And Right 216mm And Front And Back 295.5mm

Horizontal Adjustment Range:

Front 75mm Back 75mm

Headrest Adjustment Range:

Total 75mm 3 Levers

Packaging Details:

6-8 Cartons Packed To A pallet

Supply Ability:

100Sets Per Week

Highlight:

M801 Mechanical Tractor Seat

Air Ride Seats For Semi Trucks

Height Adjustment Mechanical Tractor Seat

Product Description

Mechanical Suspension Seat With Height Adjstment For Tractor Seat Details

Product Name	Mechanical Suspension Seat With Height Adjstment For Tractor Seat
Place of Origin	Shaanxi China
Product Model	M801-84
Product Size	5705701150-1210mm
Product Material	PU
Product Color	Black
Backrest size	480*630mm
Cushion size	480470290mm
Adjustable Backrest Elevation	80-120°
Horizontal adjustment	Front 105mm, Rear 120mm
Bottom Connecting Hole Spacing	Left to right 216mm*Front to back 295.5mm or Custormized
Weight Adjustment	40-130 kg
MOQ	1 Set

Mechanical Suspension Seat With Height Adjstment For Tractor Seat

Technology

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas

shielded welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and

vibrations, release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure

and sealing medium, stable performance and long service life

4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly

strengthen the durability of structural parts and reduce the damping gap

Mechanical Suspension Seat With Height Adjstment For Tractor Seat

Customizable

1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,

2: Fabric color and style Can be customized.

3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front

and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the

price according to the option.

4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm front to back ,

or customized .

5: Seat adjustment function plastic handle position can be choose : left, right,or front

6: Mechanical weight adjustment position can be selected: left, right,or front

7.Backrest size can be choose 530/630mm

Mechanical Suspension Seat With Height Adjstment For Tractor Seat More

Picture Show
