Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat

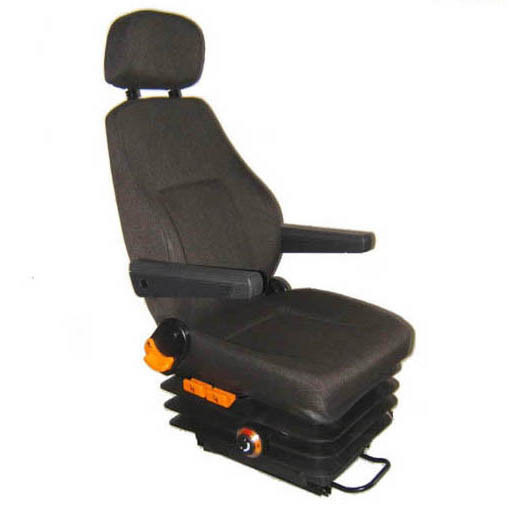

Name: Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat
Brand: Shaanxi Botai Automobile Accessories Co.,Ltd.
SKU: M801-68
Availability: InStock

Brand Name:	Botai
Model Number:	M801-68
MOQ:	1 set
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi China

Certification:

ISO9001

Name:

Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat

Material:

Fabric

Size:

570*570*1150-1210m

Color:

Grey

Product Model:

M801-68

Base Mounting Hole Spacing:

Left And Right 216mm And Front And Back 295.5mm

Packaging Details:

6-8 Cartons Packed To A pallet

Supply Ability:

100Sets Per Week

Highlight:

Customized Mechanical Suspension Seat

Truck Driver Seat M801

Adjustable SuspensionvBoat Operation Seat

Product Description

Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat Details

Product Name	Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat
Place of Origin	Shaanxi China
Product Model	M801-68
Product Size	5705701150-1210mm
Product Material	Fabric
Product Color	Grey
Backrest size	480*630mm
Cushion size	4804701150-1210mm
Adjustable Backrest Elevation	80-120°
Horizontal adjustment	Front 105mm, Rear 120mm
Bottom Connecting Hole Spacing	Left and right 216mm*Front and back 295.5mm or Custormized
Weight Adjustment	40-130 kg
MOQ	1 Set

Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat

Technology

1.Forming welding frame: Q235 cold-rolled steel sheet, 2.0mm thickness, stamping, CO2 gas

shielded welding process

2.Double spring: high strength spring steel, double spring, full of elasticity, absorb bumps and

vibrations, release comfortable rebound

3.Damper: Improve frequency response, reduce energy consumption, using special oil pressure

and sealing medium, stable performance and long service life

4.Movable composite frame: composite shaft sleeve, mechanical welded riveting design, greatly

strengthen the durability of structural parts and reduce the damping gap

Customizable

1: Seat surface can be choose: PU leather, Fabric, Leather Etc.,

2: Fabric color and style Can be customized.

3: Optional accessories: headrest, armrest, safety belt (2, 3 or 4 point type), high seat box, front

and rear horizontal adjustment rail, height adjustment , ventilation or heating function, etc., the

price according to the option.

4: The general hole distance is commonly used: 216/240/260mm * 280/295.5mm before and after ,

or customized .

5: Seat adjustment function plastic handle position can be choose : left, right,or front

6: Mechanical weight adjustment position can be selected: left, right,or front

7.Backrest size can be choose 530/630mm

Mechanical Suspension Seat Boat Operation Seat Truck Driver Seat Function
