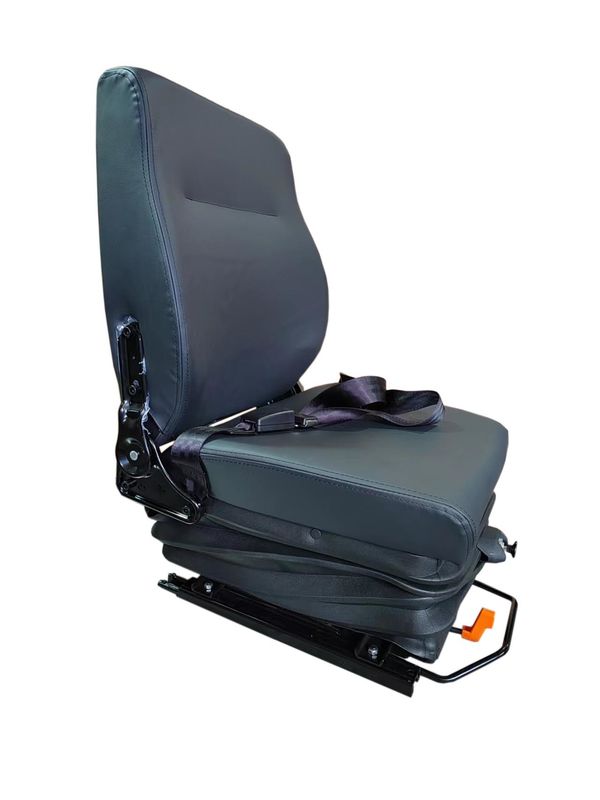

Mine Vehicle Air Suspension Seat A800 Low Pro Air Ride Seat Customized

Name: Mine Vehicle Air Suspension Seat A800 Low Pro Air Ride Seat Customized
Brand: Shaanxi Botai Automobile Accessories Co.,Ltd.
SKU: A800-1
Price: Negotiable USD
Availability: InStock

Brand Name:	Botai
Model Number:	A800-1
MOQ:	1 set
Price:	$279-$319/Set
Delivery Time:	10-15days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Shaanxi China

Certification:

ISO9001

Name:

Air Suspension Seat For Coal Mine Equipment Mine Vehicle With Safety Belt

Material:

PU/ Leather/Fabric

Product Model:

A800-1

Product Size:

500*570*840mm

Product Color:

Black Or Customized

Headrest Adjustment:

3 Levers Adjustable, Each Lever 25mm

The Back Elevation Angle Stroke:

40-170°

Horizontal Adjustment Stroke:

Front 105mm, Rear 120mm 23 Levers

Packaging Details:

6-8 Cartons Packed To A pallet

Supply Ability:

100Sets Per Week

Highlight:

Mine Vehicle Air Suspension Seat

A800 Low Pro Air Ride Seat

Low Pro Air Ride Seat Customized

Product Description

Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt

Product Name	Air Suspension Seat For Coal mine Equipment Mine Vehicle With Safety Belt
Product Size	500570840mm
Product Material	PU/Leather/Fabric
Product Color	Black /Customized
Seat Back Size	480*530 mm
Seat Cushion Size	480460210-310mm
Head Restraint Adjustment	3 levers adjustable, 25mm for each lever
Backrest Adjustment	40-170°
Horizontal Regulation	Front 105mm, rear 120mm 23 levers adjustable
Customized	Rotated 360°bottom /Armrest/Safety Belt/Sliding way Etc.,

Product material description:

Seat material: Q235 carbon steel for main frame.

Seat sponge : Cold technology, one-time molding sponge .

Air suspension seat with 12/24V compression pump application:

The seat is suitable for mine trucks and port terminal heavy trucks above, the side of the connection plate function is: armrest box bracket, the seat uses air pump suspension shock absorption function, power supply: 24V, pump power greater than 55KW, current less than or equal to 5A, air pressure: 0~0.8Mpa.

The center distance of the mounting hole at the bottom of the seat is usually: about :216mm, before and after: 280/295.5/320mm (the orientation of the person sitting on the seat), can be redrilled according to customer requirements;

Advantage

Factory direct sales, the quality of goods is guaranteed
